Before we can get started, you have to make sure that some requirements are met by your development environment. You will need:

The installation of these tools is not covered by this tutorial. Please refer to the documentation provided with these tools for installation instructions.

Pustefix provides some Maven archetypes for quickly creating new applications. A good starting point is the basic application archetype. Just call mvn archetype:generate and select the archetype org.pustefixframework:pustefix-archetype-basic:

$ mvn archetype:generate -Dfilter=pustefix

After choosing the pustefix-archetype-basic Maven will ask you for your project's groupId, artifactId, version and package. Having finished these settings Maven will generate the new project within a new directory called like the artifactId and located within the current working directory (default is myapp).

$ cd myapp
$ mvn tomcat7:run-war

The generated project is a standard Maven project with war packaging type, i.e. you can immediately build and run your application, e.g. using Tomcat by calling mvn tomcat7:run-war and opening http://localhost:8080 in your browser.

The source code used in the tutorials is available for public checkout. To test the tutorials on your local development machine, execute the following commands:

$ git clone https://github.com/pustefix-projects/pustefix-framework.git pustefix
$ cd pustefix
$ git checkout -b tutorial `git tag -l "pustefixframework-*" --sort v:refname | tail -1`
$ cd pustefix-tutorial/first-app
$ mvn tomcat7:run-war

This will clone the Pustefix Git repository, checkout/branch the latest Pustefix release tag, and run the tutorial application.

Before you can start developing the application, make sure that your system fulfills all requirements that are mentioned in Section 1.1, “Requirements”.

If your environment is set up correctly, you may create a new Pustefix project. For this tutorial, please name the project firstapp. A new Pustefix project can be created using a Maven archetype as described in Section 1.2, “Generating a new project from a Maven archetype”. The project name corresponds to the artifactId, so you should enter firstapp when you're asked by Maven. You should further choose org.pustefixframework.tutorial as groupId and org.pustefixframework.tutorial.firstapp as package name (you can choose other names, but you will have to replace the recommended names wherever used in this tutorial).

After Maven successfully created the new project, you can start it using mvn tomcat7:run-war and open it in your browser under http://localhost:8080. Figure Figure 2.1, “The new Pustefix project” shows the output of the new Pustefix project.

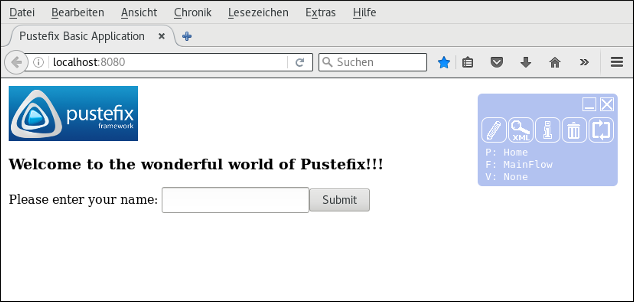

Figure 2.1. The new Pustefix project

Maven generated a working application for you. All relevant files have been put into the firstapp folder within your working directory. Please take a look at the most important folders:

Start implementing your application by adding the three needed pages to the application: EnterData, ReviewData and Confirm.

New pages are added by editing the src/main/webapp/WEB-INF/depend.xml file. For each page, you have to add an XML element defining which layout XML file should be used (the common base layout of the pages).

You can just remove or alter the according tags for the predefined pages. The new configuration should look like this:

<?xml version="1.0" encoding="utf-8"?>
<make lang="en_GB" project="firstapp">

  <!--
    Additional stuff, like configuration of namespaces and XSL transformation levels.
  -->

  <standardpage name="EnterData" xml="xml/frame.xml"/>
  <standardpage name="ReviewData" xml="xml/frame.xml"/>
  <standardpage name="Confirm" xml="xml/frame.xml"/>

</make>

You can now open the EnterData page by browsing to http://localhost:8080/EnterData.

As you did not provide any content for this page, Pustefix will display an error icon. When hovering over this icon, you can see, that the content of the page in the file txt/pages/EnterData.xml is missing.

This problem can easily be solved by adding the file src/main/webapp/txt/pages/EnterData.xml:

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.schlund.de/pustefix/core">
  <part name="content">
    <theme name="default">
      <h1>Register new user</h1>
    </theme>
  </part>
</include_parts>

If you reload the page, you will see the Register new user headline. Now repeat this step for all three pages (you can remove/alter the predefined pages which are no longer used).

If you open the application in your browser without specifying the page directly, Pustefix will try to display the page Home, which is the default page generated by the Maven archetype (you will get an error message, if you already removed the page in the previous step). Desired behaviour would be, that the EnterData page is displayed, when your application is started. This can be changed in the configuration in src/main/webapp/WEB-INF/app.xml:

<?xml version="1.0" encoding="utf-8"?>
<context-xml-service-config>

  <global-config />

  <context defaultpage="EnterData">
    ...
  </context>

  ...

</context-xml-service-config>

The entry page is specified using the defaultpage attribute of the <context/> tag. After you set this attribute to EnterData open the URL http://localhost:8080 in your browser and you will see that the content of EnterData appears.

After you changed the entry page, you can get completely rid of the generated/predefined pages by following these steps (if not already done before):

Next, you have to create the HTML form to accept the data of a new user. To create the form, you should not use the standard HTML tags, but the replacements by Pustefix, which automatically write back the data from the business logic to the HTML page.

The form has to be added to txt/pages/EnterData.xml:

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform"
               xmlns:pfx="http://www.schlund.de/pustefix/core">

  <part name="content">
    <theme name="default">

      <h1>Register new user</h1>

      <pfx:forminput>

        <div>
          <label>Gender:</label>
          <pfx:xinp type="select" name="user.sex">
            <pfx:option value="m">male</pfx:option>
            <pfx:option value="f">female</pfx:option>
          </pfx:xinp>
        </div>

        <div>
          <label>Name:</label>
          <pfx:xinp type="text" name="user.name"/>
        </div>

        <div>
          <label>Email:</label>
          <pfx:xinp type="text" name="user.email"/>
        </div>

        <div>
          <label>Homepage:</label>
          <pfx:xinp type="text" name="user.homepage"/>
        </div>

        <div>
          <label>Birthday:</label>
          <pfx:xinp type="text" name="user.birthday"/>
        </div>

        <div>
          <label>Administrator:</label>
          <pfx:xinp type="check" name="user.admin" value="true"/>
        </div>

        <pfx:xinp type="submit" value="Register"/>

      </pfx:forminput>

    </theme>
  </part>
 </include_parts>

See the Pustefix reference documentation for more information about the XML tags that have been used in this page.

Now that you have finished most of the HTML frontend, you should start implementing the business logic. The business logic in Pustefix applications mostly consists of three parts:

<interface xmlns="http://www.pustefix-framework.org/2008/namespace/iwrapper"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://www.pustefix-framework.org/2008/namespace/iwrapper
                               http://www.pustefix-framework.org/2008/namespace/iwrapper.xsd">

  <!-- This handler will process the data -->
  <ihandler class="org.pustefixframework.tutorial.firstapp.handler.EnterUserDataHandler"/>

  <!-- Parameters that have to be extracted from the request -->
  <param name="sex" type="java.lang.String" occurrence="mandatory"/>
  <param name="name" type="java.lang.String" occurrence="mandatory"/>
  <param name="email" type="java.lang.String" occurrence="mandatory"/>
  <param name="homepage" type="java.lang.String" occurrence="optional"/>
  <param name="birthday" type="java.lang.String" occurrence="optional"/>
  <param name="admin" type="java.lang.Boolean" occurrence="optional">
    <default>
      <value>false</value>
    </default>
    <caster class="de.schlund.pfixcore.generator.casters.ToBoolean"/>
  </param>
</interface>

$ mvn generate-sources
[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------------
[INFO] Building Pustefix Basic Application
[INFO]    task-segment: [generate-sources]
[INFO] ------------------------------------------------------------------------
...
[INFO] [pustefix-iwrapper:generate {execution: default}]
[INFO] Generated 1 IWrapper class
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] ------------------------------------------------------------------------
...

<?xml version="1.0" encoding="utf-8"?>
<context-xml-service-config>

  <!-- ... -->

  <pagerequest name="EnterData">
    <input>
      <wrapper prefix="user" class="org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper" />
    </input>
  </pagerequest>

</context-xml-service-config>

package org.pustefixframework.tutorial.firstapp;

public class User {
    private String name;
    private String email;
    private String birthday;
    private boolean admin;
    private String homepage;
    private String sex;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getBirthday() {
        return birthday;
    }

    public void setBirthday(String birthday) {
        this.birthday = birthday;
    }

    public boolean getAdmin() {
        return admin;
    }

    public void setAdmin(boolean admin) {
        this.admin = admin;
    }

    public String getHomepage() {
        return homepage;
    }

    public void setHomepage(String homepage) {
        this.homepage = homepage;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex;
    }
}

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans">

  ...

  <bean id="user" class="org.pustefixframework.tutorial.firstapp.User" scope="session">
    <aop:scoped-proxy/>
  </bean>

</beans>

package org.pustefixframework.tutorial.firstapp.handler;

import org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper;
import org.pustefixframework.web.mvc.InputHandler;

public class EnterUserDataHandler implements InputHandler<EnterUserDataWrapper> {

    public void handleSubmittedData(EnterUserDataWrapper wrapper) {
    }

    public boolean isActive() {
        return false;
    }

    public boolean needsData() {
        return false;
    }

    public boolean prerequisitesMet() {
        return false;
    }

    public void retrieveCurrentStatus(EnterUserDataWrapper wrapper) {
    }
}

public class EnterUserDataHandler implements InputHandler<EnterUserDataWrapper> {

    public boolean isActive() {
        return true;
    }

    public boolean prerequisitesMet() {
        return true;
    }
}

<formresult serial="1470048746036" trigger="submit">
   <formvalues>
      <param name="user.email">myemail</param>
      <param name="user.name">myname</param>
      <param name="user.sex">m</param>
   </formvalues>
   <formerrors />
   <formhiddenvals />
   <wrapperstatus>
      <wrapper active="true" name="org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper" prefix="user" />
   </wrapperstatus>
</formresult>

package org.pustefixframework.tutorial.firstapp.handler;

import org.pustefixframework.tutorial.firstapp.User;
import org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper;
import org.pustefixframework.web.mvc.InputHandler;
import org.springframework.beans.factory.annotation.Autowired;

public class EnterUserDataHandler implements InputHandler<EnterUserDataWrapper> {

    @Autowired
    User user;

    public void handleSubmittedData(EnterUserDataWrapper wrapper) {
        user.setSex(wrapper.getSex());
        user.setName(wrapper.getName());
        user.setEmail(wrapper.getEmail());
        user.setHomepage(wrapper.getHomepage());
        user.setBirthday(wrapper.getBirthday());
        user.setAdmin(wrapper.getAdmin());
    }
}

Now you have implemented the business logic, that stores your User data in the session, but still, the EnterData page is displayed, after you submitted the page. The desired behaviour is to display the ReviewData after the business logic has successfully been executed.

To achieve this, you have to create a new workflow and specify the steps in this workflow. This is done via the <pageflow/> tag in the configuration file:

<?xml version="1.0" encoding="utf-8"?>
<context-xml-service-config>

  <!-- configuration start -->

  <pageflow name="RegisterUser" final="Confirm">
    <flowstep name="EnterData"/>
    <flowstep name="ReviewData" stophere="true"/>
  </pageflow>

  <!-- pagerequest configuration -->

</context-xml-service-config>

The workflow starts with the EnterData page, which is followed by the ReviewData page. After the page flow is finished, the final page Confirm will be displayed. Open the EnterData page again, after you made the changes, fill out the mandatory fields and submit them: the page flow will lead you to the ReviewData page, as you specified in the configuration.

Up to now, you expected, that the users of your application do not make any mistakes. We all know, that this is not the case for real-life users. To test, how the application reacts, if you do not fill out all required fields, open the EnterData page again, leave the name field empty and submit the page.

As you can see, Pustefix is clever enough not to continue the page flow. If you would debug the application, you would see, that Pustefix even does not execute the handleSubmittedData method of your handler. This is because the generated wrapper class does some basic validation on the input data. As you specified the name parameter as mandatory, the data is not valid and the wrapper is not passed to the handler.

But how is the user supposed to know, why the page flow is not processed, there is no error message. But this is not completely true. Pustefix sends you an error message, but your page does not display it. If you open the DOM-tree view again, you will see a difference in the XML document that is used for the page rendering:

<formresult serial="1214248690859">
      <formvalues>
          <param name="user.email">schst@bar.de</param>
          <param name="user.sex">m</param>
      </formvalues>
      <formerrors>
          <error name="user.name">
              <pfx:include href="core-override/dyntxt/statusmessages-core-merged.xml" part="MISSING_PARAM"/>
          </error>
      </formerrors>
      <formhiddenvals/>
      <wrapperstatus>
          <wrapper active="true" name="org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper" prefix="user"/>
      </wrapperstatus>
      <pageflow name="RegisterUser">
          <step current="true" name="EnterData"/>
          <step name="ReviewData"/>
      </pageflow>
  </formresult>

Inside the <formerrors/> node, there is an <error/> element which signals an error for the field user.name. The content of the error is an include to the part MISSING_PARAM in the file core-override/dyntxt/statusmessages-core-merged.xml. This file contains all error messages provided by the core. If you open the file and search for this part, you will find something ike this XML:

<part name="MISSING_PARAM">
  <theme name="default">This parameter is mandatory.</theme>
</part>

As you can see, Pustefix informs you, that an error happened, and even provides you with a human readable message for the error. All that is left for you to do, is display it to the user. This can be done using the <pfx:checkfield/>, <pfx:error/> and <pfx:scode/> tags provided by Pustefix.

To add the error message, open the page content file txt/pages/EnterData.xml. The <pfx:checkfield/> tag is used to check, whether an error happened for a specific field or not. Inside this tag, you can place a <pfx:error/> tag. The content of this tag will only be displayed, if an error occurred for this field. The <pfx:scode/> tag is an easy way to fetch the error message from the core-override/dyntxt/statusmessages-core-merged.xml file.

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform"
               xmlns:pfx="http://www.schlund.de/pustefix/core">

  <part name="content">
    <theme name="default">

      <h1>Register new user</h1>

      <pfx:forminput>

        <!-- Other form fields -->

        <div>
          <label>Name:</label>
          <pfx:xinp type="text" name="user.name"/>
          <pfx:checkfield name="user.name">
            <pfx:error><span class="{$pfx_class}"><pfx:scode/></span></pfx:error>
          </pfx:checkfield>
        </div>

        <!-- Other form fields -->

        <pfx:xinp type="submit" value="Register"/>

      </pfx:forminput>

    </theme>
  </part>
 </include_parts>

If you now try to submit the page again without entering your name, Pustefix will display the correct error message. Of course, you have to repeat this step for all other input fields on your page.

Now that your application is displaying errors correctly, you should go back to implement the main requirements. The next feature that you will be implementing is the review page, where the user will be able to review has data. To achieve this, you will have to write the user data to the DOM tree, that is used to render the page.

You can either let Pustefix automatically serialize your Spring bean to XML, or you can do it by yourself by creating/adding according XML nodes programmatically.

Automatic serialization can be done using Pustefix's own XML serialization mechanism or the JAXB standard. Doing it programmatically, you have to add a method to your bean, annotate it with InsertStatus and implement it using the DOM API.

package org.pustefixframework.tutorial.firstapp;

import org.w3c.dom.Element;
import de.schlund.pfixcore.beans.InsertStatus;

public class User {

    @InsertStatus
    public void toXML(Element element) {
        if(name != null) {
            element.setAttribute("name", name);
        }
        if(email != null) {
            element.setAttribute("email", email);
        }
        if(birthday != null) {
            element.setAttribute("birthday", birthday);
        }
        if(homepage != null) {
            element.setAttribute("homepage", homepage);
        }
        if(sex != null) {
            element.setAttribute("sex", sex);
        }
        element.setAttribute("admin", String.valueOf(admin));
    }

}

In this example you can omit this method, because in the absence of an annotated method Pustefix uses its own default mechanism, which will result in the creation of exactly the same XML nodes here.

You just have to tell Pustefix, on which pages, the bean should be rendered. Again, this is done in the onfiguration file app.xml. This time, you will have to add an <output/> tag to the page and nest <resource/> tags for each bean, that should be rendered on this page.

<?xml version="1.0" encoding="utf-8"?>
<context-xml-service-config>

  <!-- other configuration options -->

  <pagerequest name="ReviewData">
    <output>
      <resource node="user" bean-ref="user"/>
    </output>
  </pagerequest>

</context-xml-service-config>

The bean-ref attribute references the name of the User bean, which you already have configured in the Spring configuration file spring.xml.

Open the XML view for the page, after you made the changes and reloaded the page and you will see, that the user data has been inserted into the XML:

<formresult serial="1470123298547" trigger="flow">
   <formvalues />
   <formerrors />
   <formhiddenvals />
   <user admin="false" email="myemail" name="myname" sex="m" />
   <pageflow final="Confirm" name="RegisterUser">
      <step name="EnterData" />
      <step current="true" name="ReviewData" />
   </pageflow>
</formresult>

Pustefix allows you to use XSL and XPath in your page definitions to insert this information in the rendered page. Use the ixsl namespace to access nodes from the DOM tree:

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform"
               xmlns:pfx="http://www.schlund.de/pustefix/core">
  <part name="content">
    <theme name="default">
      <h1>Review your data</h1>
      <div class="table">
        <div>
          <div>Gender:</div>
          <div>
            <ixsl:choose>
              <ixsl:when test="/formresult/user/gender/text() = 'f'">female</ixsl:when>
              <ixsl:otherwise>male</ixsl:otherwise>
            </ixsl:choose>
          </div>
        </div>
        <div>
          <div>Name:</div>
          <div><ixsl:value-of select="/formresult/user/@name"/></div>
        </div>
        <div>
          <div>Email:</div>
          <div><ixsl:value-of select="/formresult/user/@email"/></div>
        </div>
        <div>
          <div>Homepage:</div>
          <div><ixsl:value-of select="/formresult/user/@homepage"/></div>
        </div>
        <div>
          <div>Birthday:</div>
          <div><ixsl:value-of select="/formresult/user/@birthday"/></div>
        </div>
        <div>
          <div>Administrator:</div>
          <div><ixsl:value-of select="/formresult/user/@admin"/></div>
        </div>
      </div>
    </theme>
  </part>
 </include_parts>

If you now open the page again, enter your data and submit the form, Pustefix will display a new page, which contains the information you entered.

Your application now handles the input of user data and displays it again to the user. To complete the last requirement, your application will have to provide another button on the ReviewData page, which lets the user confirm the data and then executes the business logic to store the data in your persistence layer.

To achieve this, you will have to implement a new pair of wrapper and handler. As the ReviewData page does not contain any input fields, the new wrapper does not need any parameters:

<interface xmlns="http://www.pustefix-framework.org/2008/namespace/iwrapper"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.pustefix-framework.org/2008/namespace/iwrapper
                          http://www.pustefix-framework.org/2008/namespace/iwrapper.xsd">

  <!-- This handler will process the data -->
  <ihandler class="org.pustefixframework.tutorial.firstapp.handler.SaveUserDataHandler"/>
</interface>

After you implemented the wrapper, continue by creating a new SaveUserData class, which implements the IHandler interface. Make sure that the handler is active by returning true from the prerequisitesMet and isActive methods. Place the business logic that saves the new user in the handleSubmittedData method. In this example, the business logic has been replaced by a simple System.out.println call.

package org.pustefixframework.tutorial.firstapp.handler;

import org.pustefixframework.tutorial.firstapp.wrapper.SaveUserDataWrapper;
import org.pustefixframework.web.mvc.InputHandler;

public class SaveUserDataHandler implements InputHandler<SaveUserDataWrapper> {

    public void handleSubmittedData(SaveUserDataWrapper wrapper) {
        System.out.println("Business logic to save data");
    }

    public boolean isActive() {
        return true;
    }

    public boolean needsData() {
        return false;
    }

    public boolean prerequisitesMet() {
        return true;
    }

    public void retrieveCurrentStatus(SaveUserDataWrapper wrapper) {
        // Nothing to be done here
    }

}

As the handler should be triggered from the ReviewData page, you have to add the handler to the <pagerequest/> tag in the configuration:

<?xml version="1.0" encoding="utf-8"?>
<context-xml-service-config>

  <pagerequest name="ReviewData">
    <input>
      <wrapper prefix="user" class="org.pustefixframework.tutorial.firstapp.wrapper.SaveUserDataWrapper" />
    </input>
    <output>
      <resource node="user" bean-ref="user"/>
    </output>
  </pagerequest>

</context-xml-service-config>

All that is left your you now, is to add a possibility to submit the ReviewData page. But as there is no input form needed, you will learn a new way, how data can be submitted using Pustefix. The <pfx:button/> tag is used, to create links between different Pustefix pages. But it can also be used to link to the same page again and pass any arguments using the <pfx:argument/>. If you use the <pfx:argument/> tag, Pustefix will treat the request as if the page had been submitted and call the handleSubmittedData method on all handlers on the page.

As your handler does not accept any parameters, you can pass any argument as you like, for example setting the argument user.save to true.

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.schlund.de/pustefix/core">
  <part name="content">
    <theme name="default">
      <h1>Review your data</h1>
      <!-- Display user data -->
      <pfx:button>
        <pfx:argument name="user.save">true</pfx:argument>
        Go ahead and save the data
      </pfx:button>
    </theme>
  </part>
 </include_parts>

If you click on this link, the page will be submitted and if you placed the business logic inside the handler, it will be executed.

Open the txt/pages/Confirm.xml file and add some HTML, that will be displayed after the Pustefix workflow will continue to the last page.

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.schlund.de/pustefix/core">
  <part name="content">
    <theme name="default">
      <h1>Congratulations</h1>
      <p>Your data has been saved</p>
    </theme>
  </part>
 </include_parts>

Now you have implemented all specified requirements and finished your first Pustefix application.

In the last part of the tutorial you will polish some of the rough edges of your applications, which you did not deal with while implementing the application.

Although your application is already working, there are some minor problems that you should deal with.

<pfx:button page="EnterData">Go back and edit data</pfx:button>

package org.pustefixframework.tutorial.firstapp.handler;

import org.pustefixframework.tutorial.firstapp.User;
import org.pustefixframework.tutorial.firstapp.wrapper.EnterUserDataWrapper;
import org.pustefixframework.web.mvc.InputHandler;
import org.springframework.beans.factory.annotation.Autowired;

public class EnterUserDataHandler implements InputHandler<EnterUserDataWrapper> {

    @Autowired
    User user;

    public void retrieveCurrentStatus(EnterUserDataWrapper wrapper) {
        wrapper.setSex(user.getSex());
        wrapper.setName(user.getName());
        wrapper.setEmail(user.getEmail());
        wrapper.setHomepage(user.getHomepage());
        wrapper.setBirthday(user.getBirthday());
        wrapper.setAdmin(user.getAdmin());
    }

}

package org.pustefixframework.tutorial.firstapp.handler;

import org.pustefixframework.tutorial.firstapp.User;
import org.pustefixframework.tutorial.firstapp.wrapper.SaveUserDataWrapper;
import org.pustefixframework.web.mvc.InputHandler;
import org.springframework.beans.factory.annotation.Autowired;

public class SaveUserDataHandler implements InputHandler<SaveUserDataWrapper> {

    @Autowired
    User user;

    public boolean prerequisitesMet() {
        return user.getName() != null;
    }

}

public class EnterUserDataHandler implements InputHandler<EnterUserDataWrapper> {

    public boolean needsData() {
        return user.getName() == null;
    }

}

In this tutorial you learned the basics about the core features of Pustefix and developed a very simple, but typical, web application. For details about the features that you got to know in this tutorial, take a look at the comprehensive reference documentation, which describes all the configuration options, XML tags and interfaces in detail.

To build this tutorial, create a new project calculator as described in Section 2.1, “Setting up a new project”. But this time, use the Maven archetype pustefix-archetype-application with the following data:

This Maven archetype will create an application which is already set up for AJAX applications, i.e. it contains the required Maven dependencies and configuration.

In Pustefix, a web service always has to consist of a service interface and an implementation. In this tutorial, you will implement a very simple webservice which provides three methods to execute mathematical operations.

The interface for this business logic is very easy to implement:

package org.pustefixframework.tutorial.calculator;

public interface CalculatorService {
    public int add(int a, int b);
    public int subtract(int a, int b);
    public int multiply(int a, int b);
}

The implementation for this interface is not any harder to implement than the interface iteself:

package org.pustefixframework.tutorial.calculator;

public class CalculatorServiceImpl implements CalculatorService {
    public int add(int a, int b) {
        return a+b;
    }

    public int subtract(int a, int b) {
        return a-b;
    }

    public int multiply(int a, int b) {
        return a*b;
    }
}

Now that you have defined the interface for your service and also provided an implementation for it, the next step is to expose this service and make it available to the frontend.

This is done by adding a Spring bean definition for the service implementation and export this bean as a webservice. Your Spring configuration file src/main/webapp/WEB-INF/spring.xml should look like this:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:ws="http://pustefixframework.org/schema/webservices"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/aop
                           http://www.springframework.org/schema/aop/spring-aop.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd
                           http://pustefixframework.org/schema/webservices
                           http://pustefixframework.org/schema/webservices/pustefix-webservices.xsd">

  <context:annotation-config/>

  <bean id="calculator" class="org.pustefixframework.tutorial.calculator.CalculatorServiceImpl"/>

  <ws:webservice
    id="CalculatorService"
    servicename="CalculatorService"
    interface="org.pustefixframework.tutorial.calculator.CalculatorService"
    ref="calculator"
  />

</beans>

With these steps, you have finished all Java and configuration work packages and can continue implementing the client side of your application. Open the Home.xml file and add some HTML as a frontend for your calculator application (we just use the default page of the generated application):

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform"
  xmlns:pfx="http://www.schlund.de/pustefix/core">

  <part name="content">
    <theme name="default">
      <h1>AJAX Calculator Tutorial</h1>
      <fieldset>
        <legend>Calculator</legend>
        A: <input type="text" id="a"/><br/>
        B: <input type="text" id="b"/><br/>
        <input type="button" value="add" onClick="add();"/>
        <input type="button" value="subtract" onClick="subtract();"/>
        <input type="button" value="multiply" onClick="multiply();"/>
      </fieldset>
    </theme>
  </part>

</include_parts>

The HTML page contains several controls:

To implement an AJAX application, you will have to use JavaScript. This has been left out in the last example of your page. We will add it in a separate part named head, which will be automatically included in the head section of the page (this is done in the frame.xml previously created by the archetype - just to separate the HTML from all your JavaScript includes and make the pages more maintainable).

Pustefix does not only provide server side implementation helpers for your AJAX applications, but also some client side JavaScript classes which hide all transportation details from you. Pustefix will also generate JavaScript stub classes for the Java services you have exported. Therefor you have to include the following files:

The following listing shows the according head part, you should add to your Home.xml file:

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform"
  xmlns:pfx="http://www.schlund.de/pustefix/core">

  <part name="content">
    <!-- content, including part "javascript-includes", see above -->
  </part>

  <part name="head">
    <theme name="default">
      <script type="text/javascript" src="{$__contextpath}/modules/pustefix-core/script/httpRequest.js"></script>
      <script type="text/javascript" src="{$__contextpath}/modules/pustefix-webservices-jsonws/script/webservice_json.js"></script>
      <pfx:wsscript name="CalculatorService"/>
    </theme>
  </part>

</include_parts>

If you are taking a look at the generated JavaScript code, you will see, that this code defines a new class called WS_CalculatorService, which provides three methods:

These are exactly the same methods that the CalculatorService interface declared in your Java code.

//Autogenerated webservice stub (don't modify this code manually!)
function WS_CalculatorService(context) {
  pfx.ws.json.BaseStub.call(this,"CalculatorService",context);
}
WS_CalculatorService.prototype=new pfx.ws.json.BaseStub;
WS_CalculatorService.prototype.subtract=function() {
  return this.callMethod("subtract",arguments,2);
}
WS_CalculatorService.prototype.multiply=function() {
  return this.callMethod("multiply",arguments,2);
}
WS_CalculatorService.prototype.add=function() {
  return this.callMethod("add",arguments,2);
}

This class acts as a remote proxy for the Java business logic you implemented earlier. If you call any of these methods, the calculation will not be done on the client, but the request will be sent to the server, where it will be processed by the Java implementation. The response will then be sent back to the client and is available in your JavaScript application.

So all that is left to do, is implement the client side logic, that will create the proxy object and delegate the calculation to it. You can just add the Javascript to the already existing head part of your page.

You are using the <pfx:script/> tag, which is used to insert inline JavaScript into your page. In this script, you create a new instance of WS_Calculator and assign it to a global JavaScript variable.

Furthermore, you implement the three missing functions add(), subtract() and multiply(), which are called, if the corresponding buttons are clicked. All three methods are implemented the same way: The values of the two input fields are read and the corresponding method of the proxy object is called with these values. The return value of the proxy method is displayed to the user, using the alert() function.

<?xml version="1.0" encoding="utf-8"?>
<include_parts xmlns:ixsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.schlund.de/pustefix/core">

  <part name="head">
    <theme name="default">
      <script type="text/javascript" src="{$__contextpath}/modules/pustefix-core/script/httpRequest.js"></script>
      <script type="text/javascript" src="{$__contextpath}/modules/pustefix-webservices-jsonws/script/webservice_json.js"></script>
      <pfx:wsscript name="CalculatorService"/>

      <pfx:script>
        var calcProxy = new WS_CalculatorService();
        function add() {
          var a = parseInt(document.getElementById('a').value);
          var b = parseInt(document.getElementById('b').value);
          alert(calcProxy.add(parseInt(a),parseInt(b)));
        }
        function subtract() {
          var a = parseInt(document.getElementById('a').value);
          var b = parseInt(document.getElementById('b').value);
          alert(calcProxy.subtract(parseInt(a),parseInt(b)));
        }
        function multiply() {
          var a = parseInt(document.getElementById('a').value);
          var b = parseInt(document.getElementById('b').value);
          alert(calcProxy.multiply(parseInt(a),parseInt(b)));
        }
      </pfx:script>
    </theme>
  </part>
</include_parts>

Now you can open the page, enter any two integer numbers and click on any button. Your application will send the request to your business logic on the server and display the result on the client without reloading the page.

This tutorial showed you, how to implement an AJAX application based on Pustefix in several minutes. While this example only used a very simple business logic and transferred only primitive type, AJAX applications in Pustefix are not restricted to built-in Java types. Pustefix is able to send any Java-bean style objects from the client to the server and vice-versa. You only need to make sure, that there is an empty constructor in your beans.
